316 SS Pneumatic Double Rack And Pinion Actuator For Ball Valve

Brand Name : OEM

Model Number : AT32 Stainless Steel Pneumatic Actuator

Certification : CE ATEX ISO9001

name : 316 SS Pneumatic Double Rack And Pinion Actuator For Ball Valve

keyword : 90 degrees Stainless Steel Pneumatic Actuator

Power : Pneumatic control

Rotation Angle : 90 degrees

Metarial : stainless steel 304 or 316

Structure : rack and pinion rotary actuator

Working Pressure : 2-8 bar

Surface Treatment : hard anodizing

Connection : NAMUR, ISO5211 and DIN3337

Application : ball valve, butterfly valve, and rotary machine

feature : Low Friction、High Cycle Life 、No Noise

modes : Double Acting And Single Acting Spring Return

design : compact

Accessories of pneumatic actuator : Limit Switch Box, Solenoid Valve, Positioner

Contact Now

316 SS Pneumatic Double Rack And Pinion Actuator For Ball Valve

Stainless Steel Pneumatic Actuator Features And Options

304 Stainless Steel Housing Is Ideal For Harsh Environments Where Corrosion Resistance Is Crucial
Double Acting (Da) And Spring Return (Sr) Options
Limit Switches, Modulating Positioners, Namur Solenoids And Many Other Custom Options Available (Bi-45 Is Too Small For Accessory Options)
Ideal For Use With Sanitary Or Stainless Steel Ball Valves

Stainless Steel Pneumatic Actuator Table

Brand	OEM
Model	AT32
Certification	CE ATEX ISO9001
Power	Pneumatic control
Rotation Angle	90 degrees
Metarial	stainless steel 304 or 316
Size	52-300
Structure	rack and pinion rotary actuator
Working Pressure	2-8 bar
Surface Treatment	hard anodizing
Connection	NAMUR, ISO5211 and DIN3337
Application	ball valve, butterfly valve, and rotary machine
feature	Low Friction,High Cycle Life ,No Noise
modes	Double Acting And Single Acting Spring Return
design	compact
Accessories of pneumatic actuator	Limit Switch Box, Solenoid Valve, Positioner.

Stainless Steel Pneumatic Actuator Application

AT Series Stainless Steel Pneumatic Actuator Auto-Control In The Field Of Electric Power, Petrochemical, Metallurgy, Petroleum, Gas, Town, Construction, Drainage, Chemical Industry, Oil Refining, Mining, Power Plant, Metallurgy, Architecture, Medicine, Food, Gas, Scientific Research, Etc.

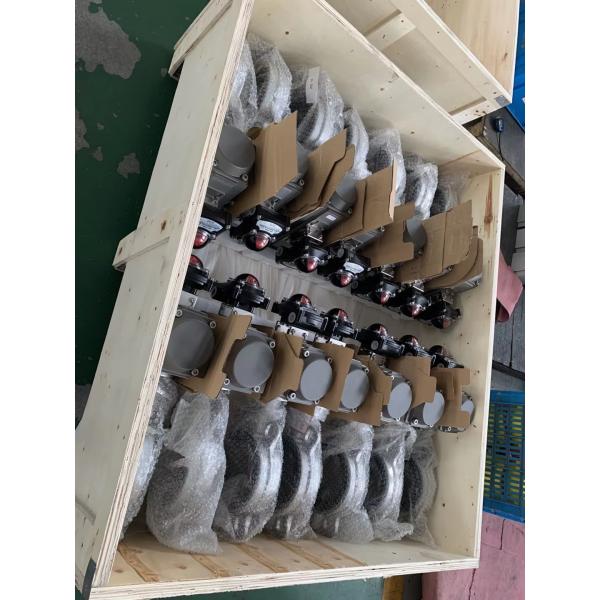

Stainless Steel Pneumatic Actuator Packed Separately In Cartons, Wooden Pallets Or Wooden Cases.
